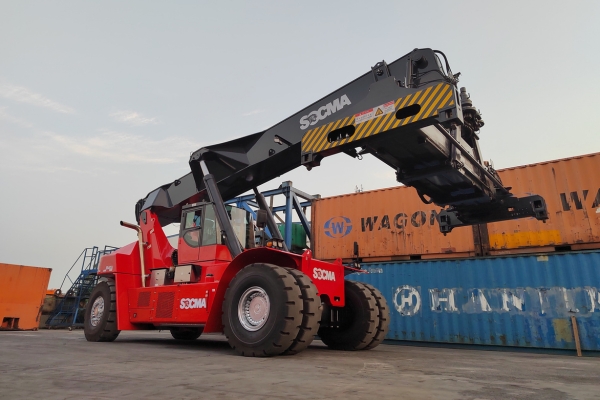

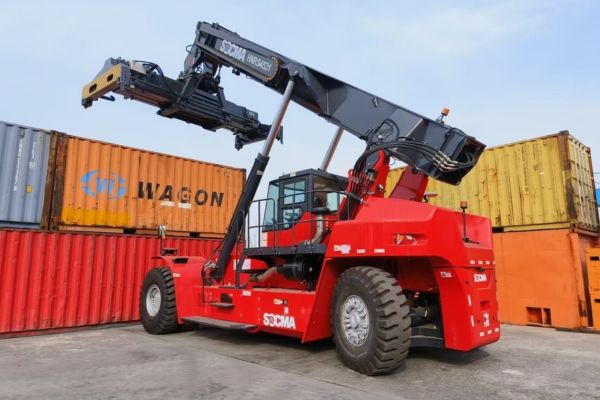

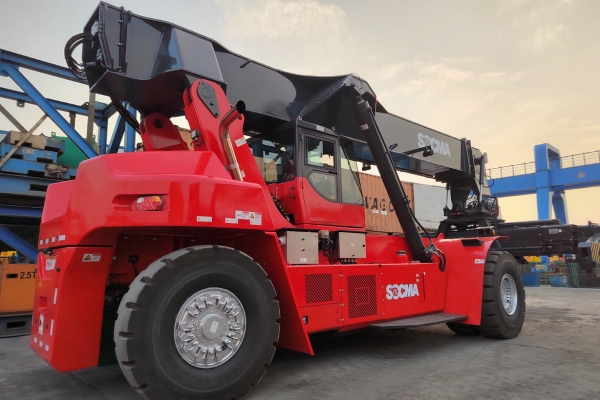

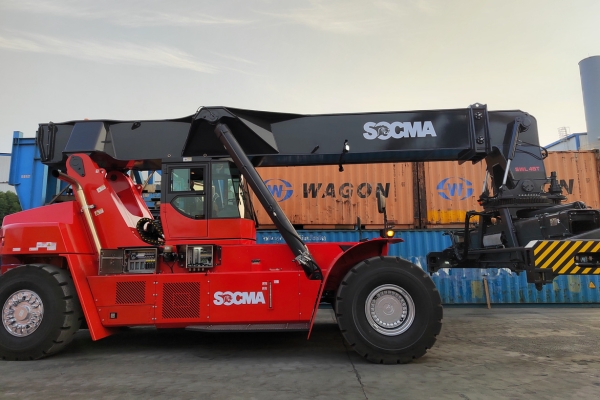

SOCMA HNRS4531 Reach Stacker For Container Handling

Product Description

The SOCMA HNRS4531 Reach Stacker is designed for handling 20ft and 40ft containers, featuring a maximum lift capacity of 45 tons at load center c1, 31 tons at c2, and 15 tons at c3, with a Cummins QSM11 engine. Its self-leveling spreader maintains flatness within 3°, ensuring swift container pickup and release.

Equipped with a higher pressure-rated hydraulic pump and CAN bus technology for faster responsiveness, it includes a 360° panoramic reversing camera (optional) with humanoid recognition and intelligent braking assistance. An automatic fire suppression system enhances safety.

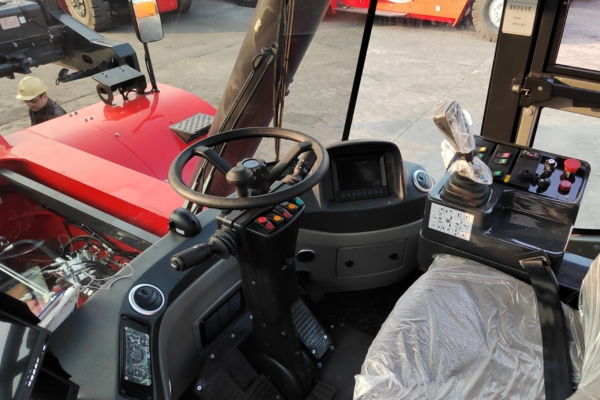

The movable cab with a snap-on design and ergonomic controls offers comfort, while a variable load-sensitive hydraulic system reduces energy consumption by 10%. This reach stacker leverages SOCMA’s expertise for high productivity in container handling operations.

Product Parameter

Standard Engine: Cummins QSM11

Standard Transmission: DANA 15.5HR36432

Load Capacity at Load Center Distance c1, c2, c3: 45/31/15 tons

Load Center Distance c1, c2, c3: 155/15/15 mm

Stacking Height at 1st, 2nd, 3rd row 9’6”/8’6”: 5/15/15/15 (inferred)

Load Distance, Center of Drive Axle to Face of Front Tires: 838 mm

Wheelbase: 6000 mm

Service Weight: 72 tons

Axle Loading with Load (c1), Front/Rear: 101/16 kN

Axle Loading without Load (c1), Front/Rear: 34/38 kN

Tire Type: Pneumatic

Tire Size, Front: 18-25x40PR

Number of Tires, Front/Rear (X Driven): 4/2

Tread, Front: 3048 mm

Tread, Rear: 2790 mm

Ground Pressure Front/Rear: 0.95 mpa

Boom Angle Minimum/Maximum: 0/60 deg

Height of Boom Lowered: 4623 mm

Lift Height at Load Center c1: 15100 mm

Lift Height at Load Center c2: 15100 mm

Height, Boom Extended: 17952 mm

Height of Overhead Guard (Cabin): 3656 mm

Seat Height to SIP: 2360 mm

Height under Twistlock - Lowered: 1181 mm

Overall Length: 8021 mm

Overall Length including Boom Retracted: 11370 mm

Overall Width across All of Truck: 4142 mm

Overall Width across Spreader 20’: 6053 mm

Overall Width across Spreader 40’: 1158 mm

Ground Clearance: 355 mm

Axle Width: 20’ Container - Add Clearance: 11797 mm

Axle Width: 40’ Container - Add Clearance: 13965 mm

Outside Turning Radius: 8000 mm

Internal Turning Radius: 1200 mm

Lateral Displacement: 4800 mm

Rotation Angle: +105/-195 deg

Spreader Weight: 83 tons

Maximum Working Pressure Boom/Spreader: 240 bar

Hydraulic Oil Tank Volume: 850 L

Fuel Tank Volume: 400 L

Travel Speed, With/Without Load: 21/25 km/h

Lifting Speed, With/Without Load: 250/420 mm/s

Lowering Speed, With/Without Load: 300/450 mm/s

Gradeability - With/Without Load: 32.6%/39%

Drawbar Pull: 330 kN

Noise Level (Inside Cab): 75 dB(A)
